Onkyo CR-70R (Ampli - Cd player - Tuner ) Bluetooth

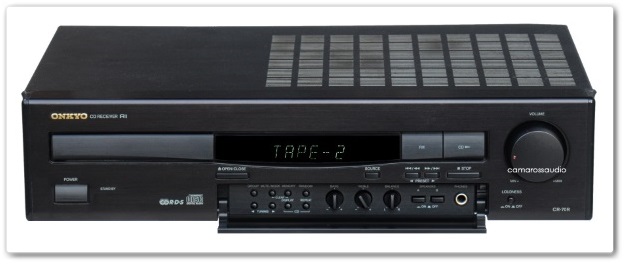

Onkyo CR-70R

Amplifier

Cd player (Kopya cd okur)

Tuner (RDS)

Bluetooth 4.0 (Harici)

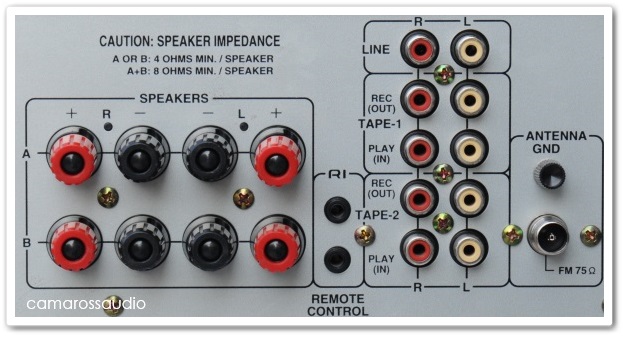

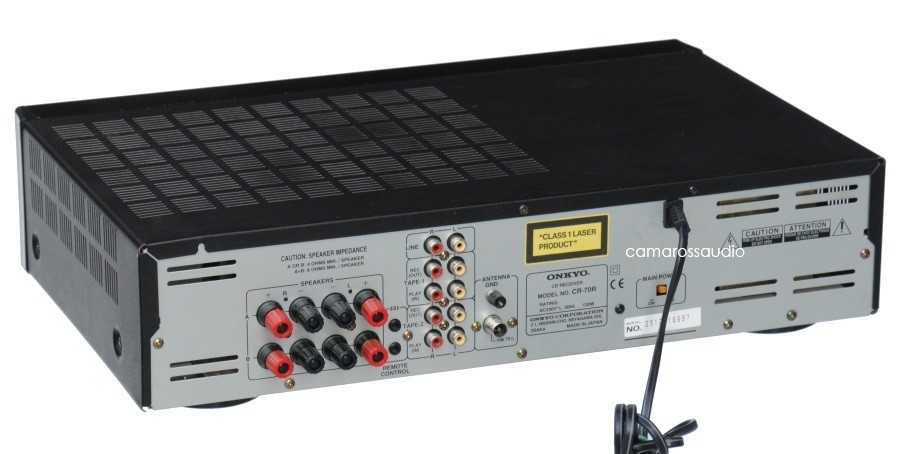

Connections

Number of inputs: 3

Line in, Tape 1, Tape 2: 150 mV / 50 kOhm

Number of outputs: 2

Tape 1, Tape 2

Technical specifications

Amplifier

Continuous power:

8 ohms: 2x30 W (0.08%)

dynamic performance

8 ohms: 2x43 W

4 ohms: 2x67 W

3 ohms: 2x73 W

2 ohms: 2x84 W

Total harmonic distortion: 0.08% at rated power

Damping factor: 50 to 8 ohms

Frequency response: 20 - 30 000 Hz (± -1 dB)

Signal to noise ratio:

Stereo channel separation:

EQ

Bass: ± 10dB

Altitudes: ± 10dB

Loudness: yes (+ 7dB at 70Hz, +5 at 10kHz)

High Filter:

Low-filter (Subsonic):

Mute: Yes

Direct / Line Straight: no

Tuner

Reception:

Frequencies: VHF: 87.50 - 108.00 MHz

Frequency response: 30 - 15,000 Hz (± 1,5dB)

Input sensitivity: 19.2dBf

Distortion: Mono: 0.25%, Stereo 0.50%

Signal to noise ratio:

Mono: 73dB

Stereo: 67dB

Channel separation:

Selectivity: 50dB (DIN)

Single-frequency selection:

Spurious selection:

Image frequency attenuation: 85dB

IF attenuation:

AM suppression: 50 dB

Output level:

RDS: yes

Station memory:

Special features

CD player

Dimensions: 455 x 110 x 330 (WxHxD)

Weight: 7.8 kg

Cihaz beraberinde gönderilecek Bluetooth 4.0 Alıcısı sayesinde ki Bluetooth özelliği olan herhangi bir PLAYER ile PlugandPlay ( hızlı bağlantı ) bağlantı yapıp analog dinleti yapabilirsiniz.

WAV 24 bit / 96kHz, ALAC, WMA, MP3 formatlı dosyaları, ve Bluetooth  sinyali ile gönderebileceğiniz tüm uygulamaları okumaktadır

Kablo ile çıkış veren herhangi bir kaynağı göndereceğimiz 3.5 to 3.5 mm kablo yardımıyla bağlayabilirsiniz.
