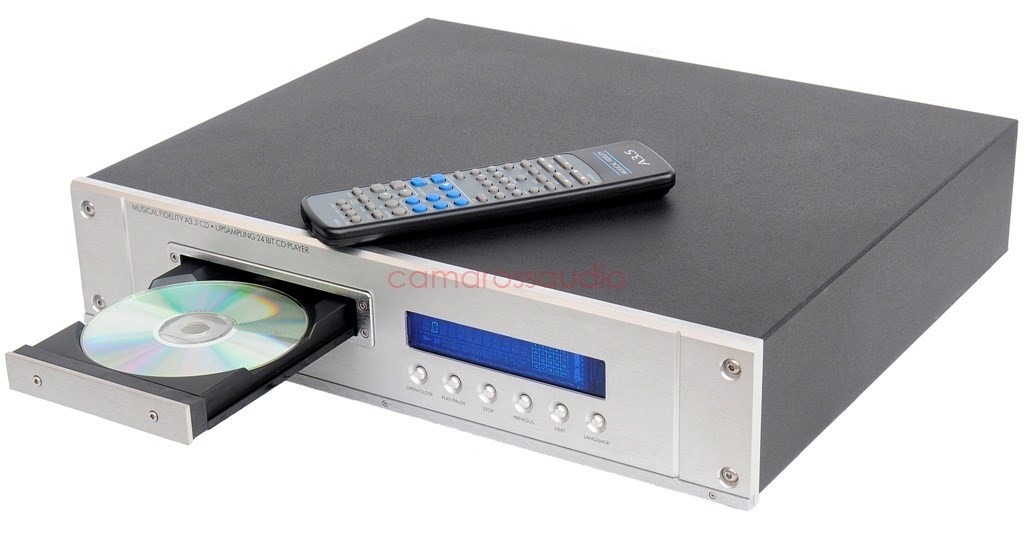

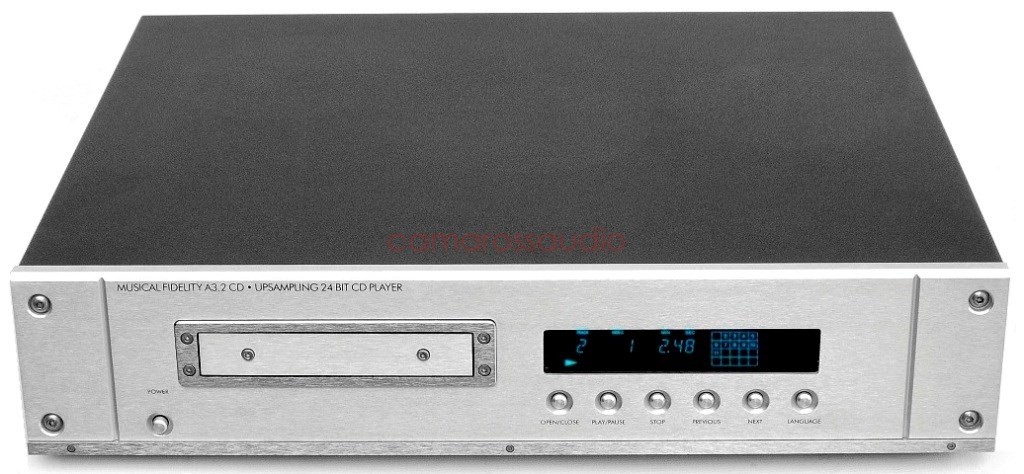

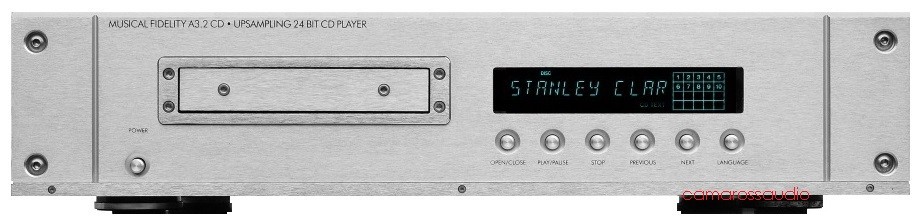

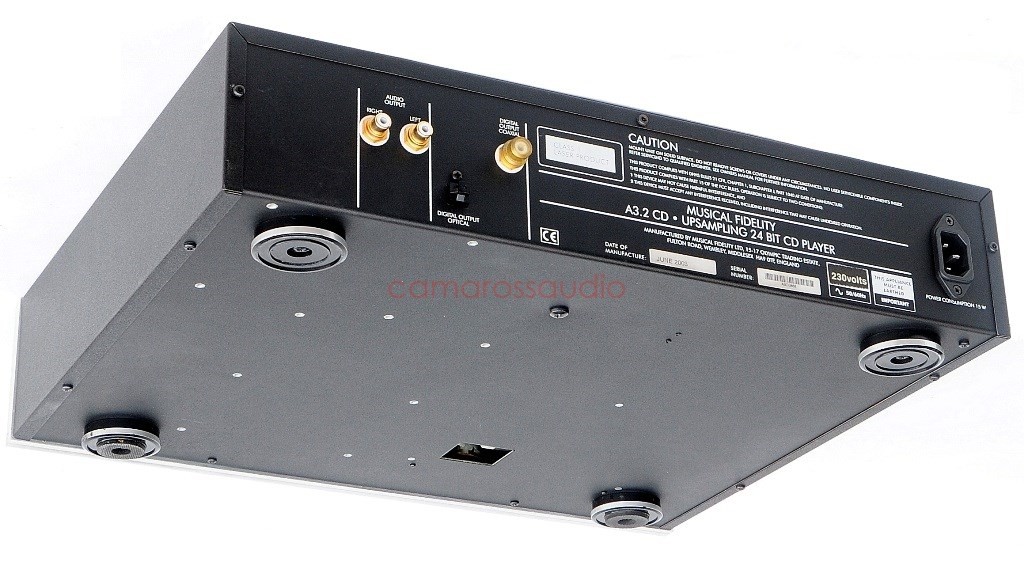

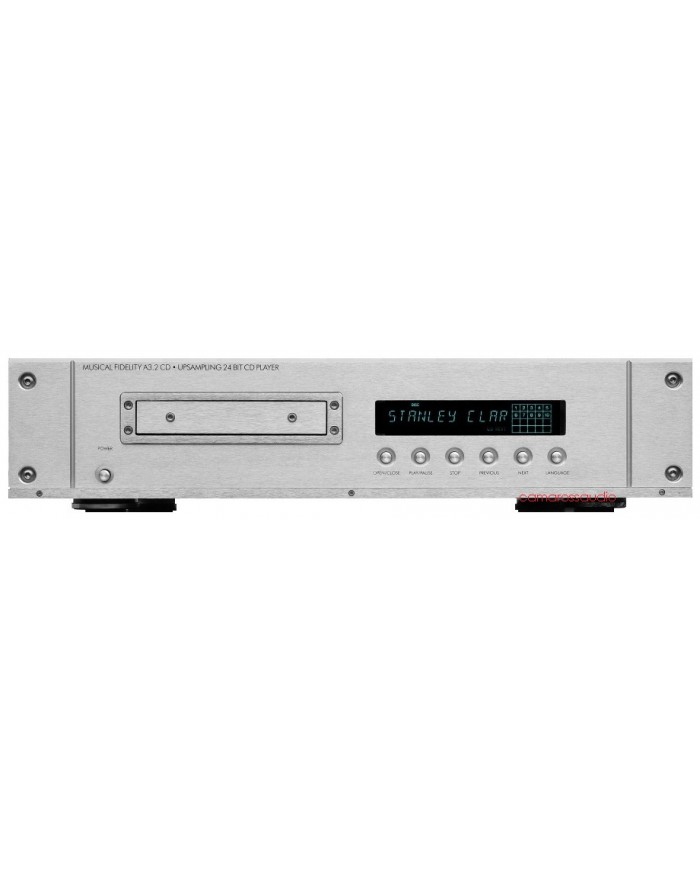

Musical Fidelity A3.2 CD Upsampling 24 Bit

DAC architecture 24 bit Delta-Sigma (Bitstream)Dual differential8x oversampling

Disc mechanism Sony

Upsampling 96kHz

Frequency response 10Hz to 20kHz +0 / -0.2 dBSignal / noise ratio > 115dB 'A' weighted

Total harmonic distortion < 0.006% 10Hz to 20kHz

Total correlated jitter < 170 pS

Channel separation > 100dB 20Hz to 20kHz

Linearity < 0.2dB down to -90dB

Audio output at digital 0dB level 2.14VRMS at 1kHz nominal

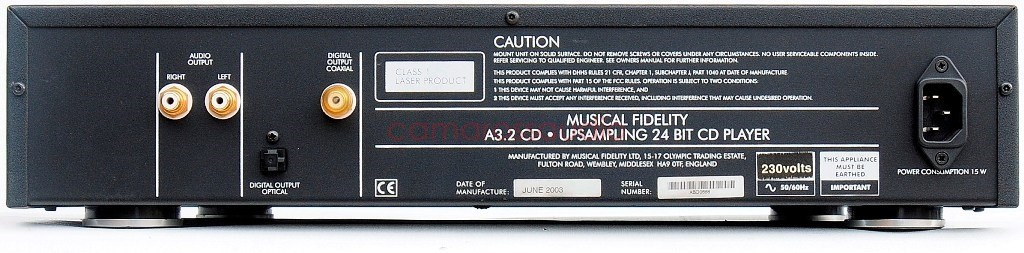

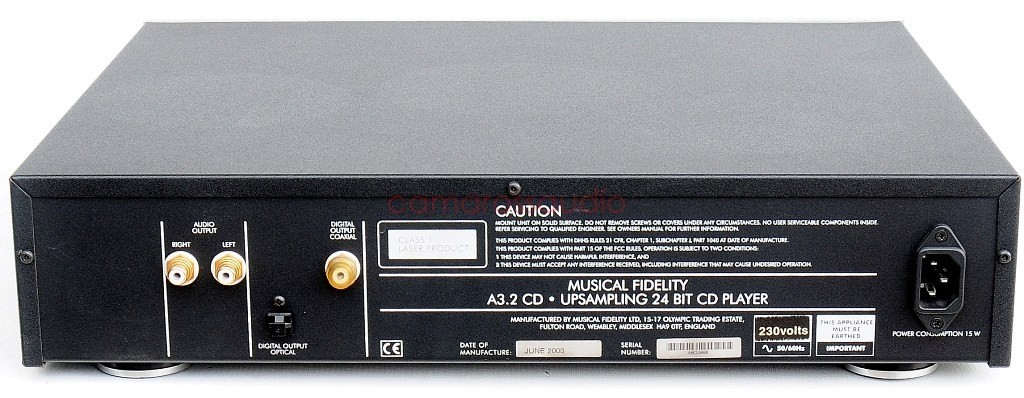

Analog output 1 pair RCA connectors

Analog output impedance 50 Ohms

Digital outputs 1 optical (Toslink),1 S/PDIF (RCA connector)

Power requirements 100 / 115 / 230V AC 50 / 60Hz (factory preset)15 Watts

Dimensions (approximate) 440mm, 17.3 inches wide102mm, 4 inches high including feet375mm, 14.8 inches deep including terminals

Weight 6kg, 13.2lbs unit only, un-boxed 8kg, 17.6lbs in shipping carton

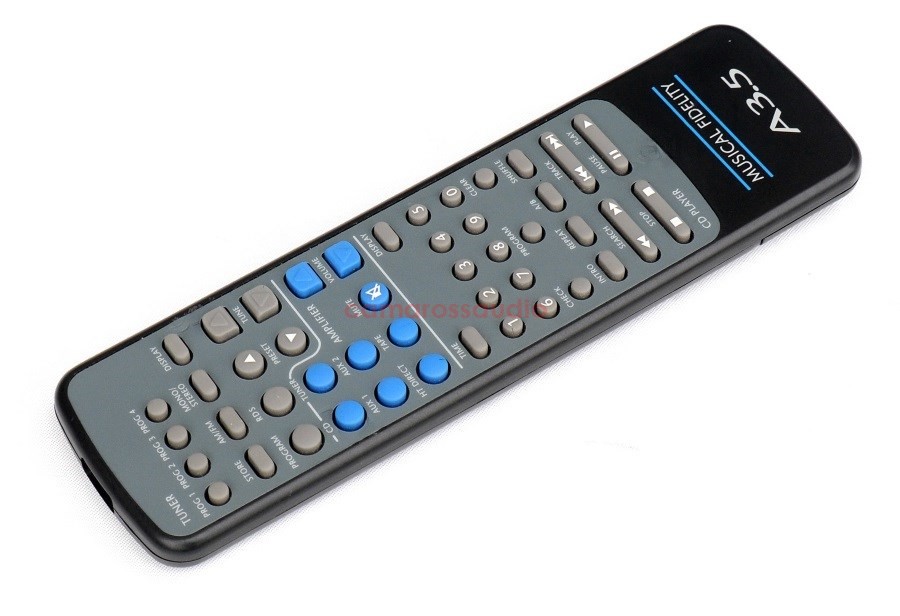

Standard accessories Remote control handset (universal type),2 batteries (type SUM-4, AAA, LR03)IEC type mains lead
