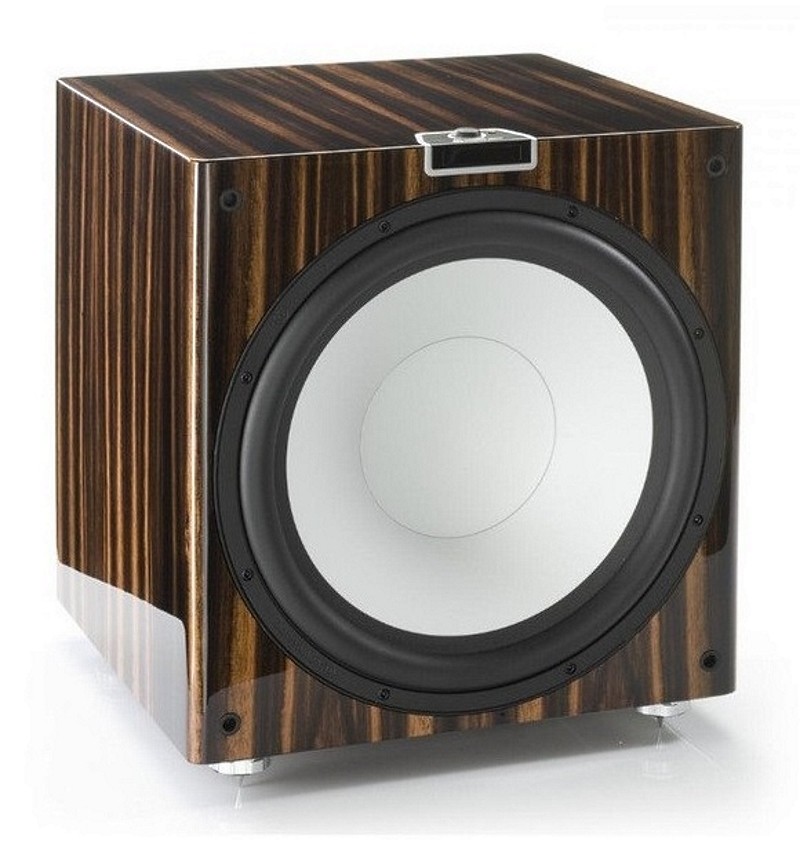

Monitor Audio Gold W15 Subwoofer

It may deliver taut gut-churning bass all the way down to a seismic 18Hz, but the Gold W15 is also an intelligent design, featuring an advanced automatic room correction system called LEO™ (Listening Environment Optimizer). LEO simply and automatically eliminates the detrimental bass boost of boundaries and corners through the use of a microphone and test tones. The Gold W15's sealed enclosure and front-firing driver make it easy to install, and calibration from the front-mounted controls and dimmable LED display is simple, even from a distant position. It's equipped with a 12V trigger and remote control with four user EQ pre-sets.

TECHNOLOGY

Ultra long throw 15” C-CAM® (Ceramic-Coated Aluminium/Magnesium) driver featuring triple suspension

Large black anodized 3” voice coil and double stack motor system provides high power handling and low distortion

Carefully optimized motor system design to reduce heat and improve efficiency

Powerful 650Watt DSP Controlled amplifier (D2 Audio™)

Advanced full bridge switch mode power supply (SMPSU) Capable of delivering over 1200 watt peak power

12V trigger - provides switching control from A.V amp or processor

Rigid, 25mm (1”) thick M.D.F construct

Heavy radial cabinet bracing with separate amplifier partition

Front mounted control panel for easy access and viewing

The LEO™  system provides Automatic Room Mode Correction (ARMC) for easy set up and perfect sound quality

Remote control with 4 user EQ settings

Selected real wood veneer or high gloss lacquer finishes.

SPECIFICATION

System Format: Sealed Cabinet. 25mm M.D.F construction with internal bracing. Sealed amplifier compartment

Low Frequency Limit: 18 Hz

Upper Frequency Limit: 40 - 120 Hz Variable

Low Pass Filter Alignment: Active 4th order 24dB/octave (6/12/18/24 dB user adjustable)

Amplifier Power Output: 650 watts Continuous. 1200 watts Peak

Amplifier Classification

D2AudioTM DSP controlled, Class-D amplifier system. High current switch mode power supply (SMPSU)

Equalisation: 4 Settings (Off/Music/Movie/Impact)

Phase Control: 0-90-180-270 degrees

Auto Sensing Input Level Requirements

Line Level > 2mV. Standby after 10 minutes if no signal sensed

Digital Volume Level: -60 to +10dB in 1dB increments

Drive Unit Complement: 1 x 15” C-CAM® sub-woofer driver featuring triple suspension

3” long throw voice coil

12V Trigger Input

3.5mm mono jack socket

Connections: Stereo RCA in/out

LFE in/out

12V Trigger in (3.5mm mono jack)

LEO* - 3.5mm Microphone input jack (microphone supplied)

Input Impedance: 20 K Ohms

Dimensions (HxWxD): 430 x 400 x 400 mm

Grille Depth: 28 mm (11/8 Inches)

Weight (unpacked): 35.3kg (77lb 10oz)

Mains Input Voltage: 100 - 120 Vac / 220 - 240 Vac 50/60 Hz (Factory preset)

Electrical Certifications: CE/CB/ETL/Fcc/ErP (Energy saving compliant)

Power Consumption: Maximum 1000W. Standby < 0.5W (ErP Compliance)

Fuse Type: 20mm UL/VDE (Value is region specific)

IR Remote Control Code: NEC SH6122
